Mechanical Dimensions

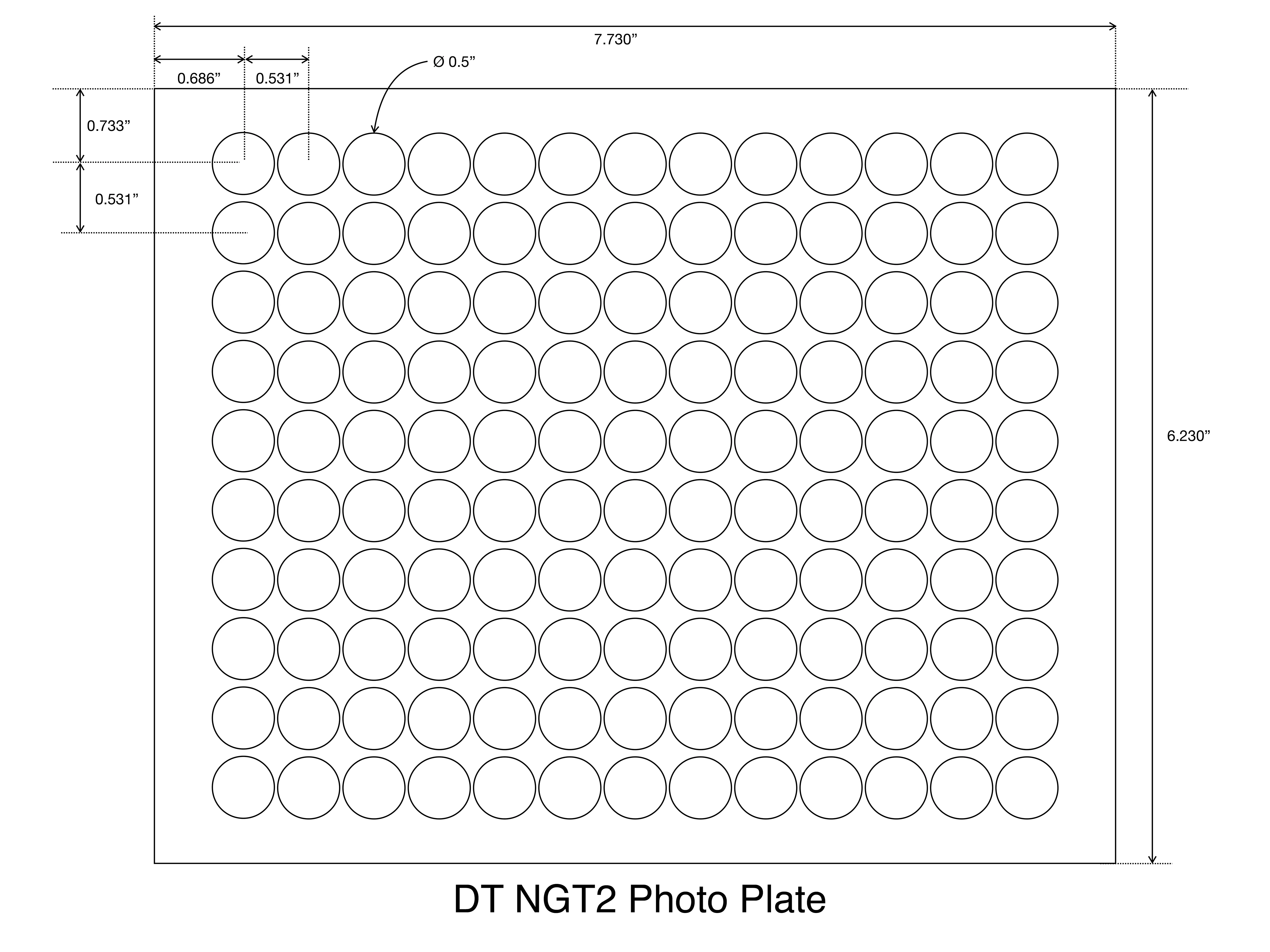

The DT NGT2 is made from a single metal plate measuring 7.73×6.23" (196×158mm).
Circular cups are cut into the metal that are 0.5" (12.7mm) in diameter in placed with their centers placed 0.531" (13.5mm) apart.
These dimensions are shown below
Download (PDF) of the above:
Printed Text and Fiduciary
The front of the target is laser etched with column headers (A to M) and row headers (0 to 9) brand names in the bottom left and bottom center and serial number in the bottom right. There are also crosshair fiduciaries in the four corners. The location and alignment of this printing and crosshair fiduciaries has varied by batch. See Developer Implementation Guide for more detail.
