AI Crop & Straighten
Include Target in Crop
4 min

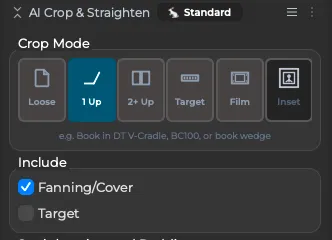

the crop can be automatically expanded to include a detected object level target this is supported in loose, 1 up, and 2+ up mode, though works slightly differently in 2+ mode here is an example of the crop being extended to include an isa goldenthread object level target located to the right of the material, with padding set to 200px straighten and padding + include target when including the target in the crop the crop and straightening logic is as follows the crop and straighten angle is set based on the material the crop is extended to include all of the target the padding, if any, is applied because of this order, if the material and target are placed at different angles it is the angle of the material that will take priority include target with page splitting when using 2+ up mode with split at gutter the target inclusion works a bit differently compared to other modes "include target(s) with closest page" is the name of the option in this mode when enabled the following logic is used all page(s) are found all targets are found each target is assigned to the closest page, and that page's crop is expanded to include it in this way, multi page material can support target inclusion in a practical way, so long as each target is clearly associated with a particular page for example, when digitizing books open to 180º a target can be placed vertically along the left of the left page and the right of the right page, and those targets will be included with their respective pages using this option with facing materials with a target located in between pages will result in unpredictable behavior for example if a single horizontal target is placed above facing left/right pages it will be included with whichever page it is closer to the center of; if the target is centered then the "closest" page will vary randomly, and the crop to include it will include much of the other page supported targets image science associates golden thread object level targets (0 5x, 1x, 2x) image engineering scan reference chart te263 we are interested in supporting additional targets please consider docid 6yfcofsmxk4gawy6 wgdg that contain other targets you want to see supported
